Lip seals and mechanical seals prevent gas and fuel leakage in various stationary and rotating components. However, you need to know the effectiveness of the suitable seal for a specific application to avoid incorrect selection. Let’s dig into the specifics of their comparison!
Lip Seals
A lip seal is a type of seal that works by using a flexible lip. The lip of this seal retains the fluids inside and prevents the contaminants from entering and polluting the equipment. These are also known as rotary, radial shafts, and oil seals. The featured lip of lip seals creates a barrier when pressed against a rotating shaft to block leaks.
Types of Lip Seals
There are different types of lip seals that you can use in multiple operations, considering their characteristics and the nature of the requirement. The most prevalent types of lip seals are:
Single Lip Seals
Double Lip Seals
U-Rings
L-Rings
Y-Rings
V-Rings
J-Rings
W-Rings
PTFE Lip Seal
Rotary Shaft Lip Seal

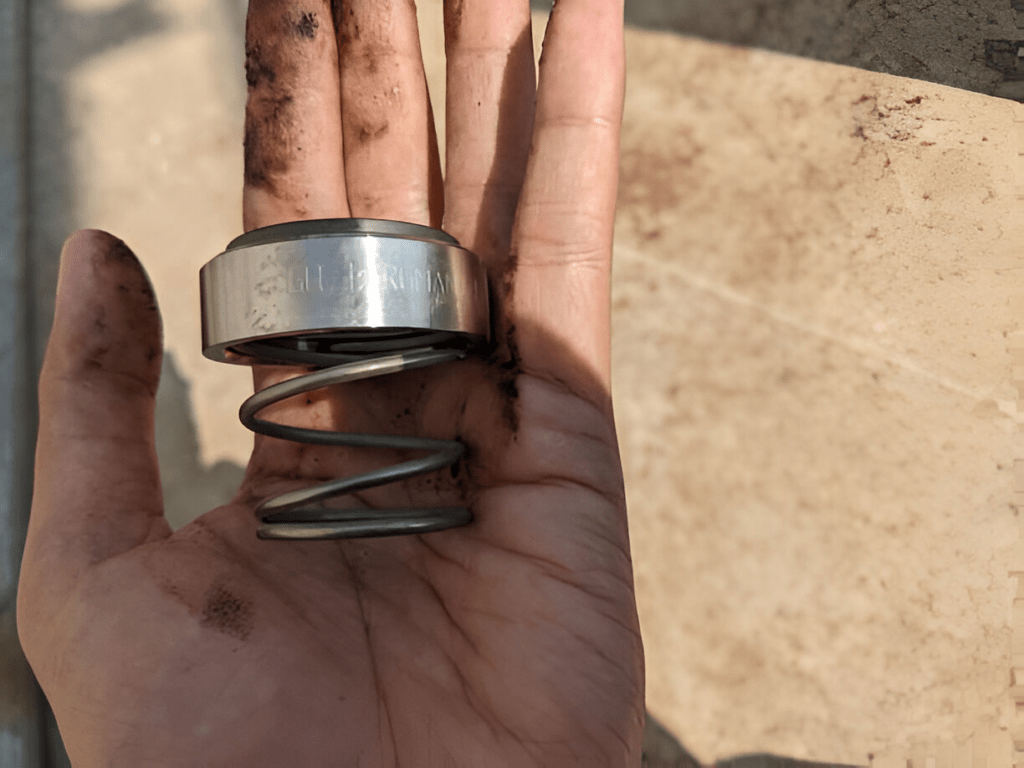

Mechanical Seals
Mechanical seals ensure reliable sealings between both the stationary and moving surfaces. In most cases, it is advantageous to use in rotating equipment because it creates a fluid film that separates the moving parts.
Types of Mechanical Seals
You’ll find various mechanical seals used in multiple applications based on their unique properties. Let’s take a peek at the most common types of mechanical seals:
Cartridge Seals
Balanced Mechanical Seal
Unbalanced Mechanical Seal
Bellow Seals
Diaphragm Seals
Conical Mechanical Seals
Single Spring Seals
Multi Spring Mechanical Seals
Ceramic Metal Seals
Lip Seals vs Mechanical Seal
The basic function of lip and mechanical seals is to block leaks, yet they differ in their characteristics. Let’s take a look at the things that differentiate lip seals from mechanical seals:
1. Materials
Lip Seals: Lip seals are made up of high-quality materials so that they can bear extreme temperature and chemical resistance. It consists of:
- Elastomers
- Polytetrafluoroethylene
- Nitrile rubber
- Fluororubber
- Polyurethane
- Elastomers
- Fluorocarbons
- Silicone
- Flourosilicone
- Polyacrylate
Mechanical Seals: Depending on the particular requirements of various applications, mechanical seals typically consist of various materials. These materials include:
- Silicon Carbide
- Silicon Nitride
- Alumina Oxide
- Tungsten Carbide
- Stainless Steel
- Graphite
- Fluororubber
2. Design & Shape
Lip Seals: These elastomeric seals have a round shape and are simple, compact designs. They use a flexible lip that makes contact with the beginning and end of the rotating shaft. Some lip seals come with a spring inside, while others do not.
You can also customize the lip seals in various shapes for versatile usage. However, single lip, twin lip, single and double lip without spring, etc., are the most common designs of lip seals.
Mechanical Seals: The design of mechanical seals is usually complex and based on multiple components. You can see their common examples in your daily life in the form of gaskets, sealing faces, and springs. Furthermore, the seal has two faces, one of which is stationary and the other rotary.
Springs join these faces together. Installation of mechanical seals is difficult due to the need for precise alignments and adjustments.
3. Main Components
Lip Seals: These include a flexible sealing lip, a metal case body, or a spring. Its main component is the sealing lip which prevents leaking. Whereas the spring present inside the seal ensures contact between the lip and the shaft.
Mechanical Seals: Mechanical seals generally consist of stationary components, rotating components, secondary static seals (o-rings, v-rings, wedges), or spring components. Various other hardware components of mechanical seals involve collars, compression rings, gland rings, etc.
4. Functions or Performance
Lip Seals: The lip seals are effective in preventing leaks and maintaining the lubrication of the equipment. However, they perform effectively in low to medium temperatures and pressures. These seals ensure the integrity of the equipment by compressing its elastomeric ring between the joining surfaces.
Mechanical Seals: If you want efficient sealing solutions for your equipment under extreme pressure and temperature, choose the mechanical seals. Their reliable sealing is not limited to extreme temperatures but also shows resistance to a wide range of chemicals.
A thin fluid film is present inside the mechanical seal that prevents contact of its sealing faces and reduces friction or wear.
5. Maintenance
Lip Seals: Usually, the lip seals do not require heavy maintenance because of their simpler designs. However, you need to provide maintenance to the lip seals to prolong the life of these seals and your equipment. Ensure to regularly clean and lubricate these seals and also keenly monitor the operating conditions.
Mechanical Seals: The mechanical seals require more maintenance compared to the lip seals. Their maintenance involves cleaning seal faces, lubrication, replacement of worn-out components, and adjustments of their alignment.
In addition, the mechanical seal needs regular monitoring because they often show signs of damage or leakage. So, it is better to do regular inspections to troubleshoot the problems.
6. Applications
Lip Seals
Lip seals have broad usage in different industries. You can observe their usages in:
1. Automotive: In the automobile industry, lip seals provide reliable sealings to ensure the proper working of systems. These can include engine components, gearboxes, and crankshafts of vehicles.
2. Industrial Machines: Many industrial machines e.g., industrial pumps, compressors, mixers, and gearboxes utilize lip seals to avoid leaking and contamination.
3. Aerospace: Lip seals provide precise sealings of the flight controls, landing gears, engines, and door frames of the aircraft.
4. Food Processing: Food processing machinery, e.g., mixers, kneading machines, conveyors, and separators, have lip seals to prevent leaking.
Mechanical Seals
If we look around us, we can find various applications of mechanical seals in different industries. However, their most common applications are:
1. Automotive: In the automotive industry, mechanical seals play an important role in sealing the water pumps and the air conditioning systems of vehicles.
2. Marine Industry: Different types of machinery of ships, such as propulsion systems have mechanical sealing applications.
3. Industrial Machinery: A large number of pumps e.g., centrifugal pumps, positive displacement pumps, and rotary and reciprocatory compressors have mechanical sealing solutions.
4. Pharmaceuticals: Many equipment and machines in the pharmaceutical industry have mechanical seals to maintain aseptic processing and hygiene, e.g., mixers and agitators.
Key Considerations When Choosing a Seal
You need to consider various factors while selecting a seal for a specific operation. The following considerations may help you:
1. Cost
It’s important to select a seal within your budget range. If we compare the cost of these seals, then lip seals have a lower cost compared to mechanical seals. However, mechanical seals are cost-effective because they are durable and long-lasting with proper maintenance.
2. Performance
If we observe the performance of these respective seals, mechanical seals offer superior leak control. Everyone wants seals that can handle high operating speeds and vibration of the equipment. In this case, mechanical seals are more suitable for these conditions.
3. Operating Conditions
You need to ensure that the material of the seal can withstand a range of temperatures. For example, in Viton/FKM vs PTFE seals, Viton/FKM can handle extreme temperatures, whereas PTFE handles harsh conditions efficiently.
Furthermore, in the Viton vs Teflon chemical resistance comparison, both materials are highly resistant to chemicals. But you need to select considering the specific chemicals. In addition, if you want to use a seal in high-pressure situations, select a mechanical seal because lip seals withstand low to moderate pressure ranges.
4. Maintenance & Longevity
Before selecting a seal, consider maintenance and replacement needs. Lip seals require less maintenance and are easier to replace, but they wear out quickly. In contrast, mechanical seals can have a longer lifespan; however, they are difficult to maintain and complex to replace.
Final Thoughts
If you want to select a seal between a lip seal and a mechanical seal, you need to understand their key characteristics. Lip seals are cost-effective but you cannot use them in extreme conditions. Whereas, mechanical seals provide superior performance in demanding scenarios. So, assess your requirements first and choose the right seal!
FAQs
1. What Are the Limitations of Lip Seals?
Lip seals are not suitable for use in extreme pressure and temperature situations. In addition, it can wear out quickly due to its smaller surface area. These seals are susceptible to higher friction which results in potential damage to the shaft.
2. What Are the Limitations of Mechanical Seals?
Mechanical seals are expensive, have complex installation processes, and need frequent maintenance. You also have to regularly monitor and service them while using them in a high-vibration environment.
3. What Is the Way to Measure Lip Seal?
If you want to measure the size of a lip seal, measure its outer diameter, inner diameter, and width to determine its size. You can do it with the help of a ruler, but calipers are best for more precision.
