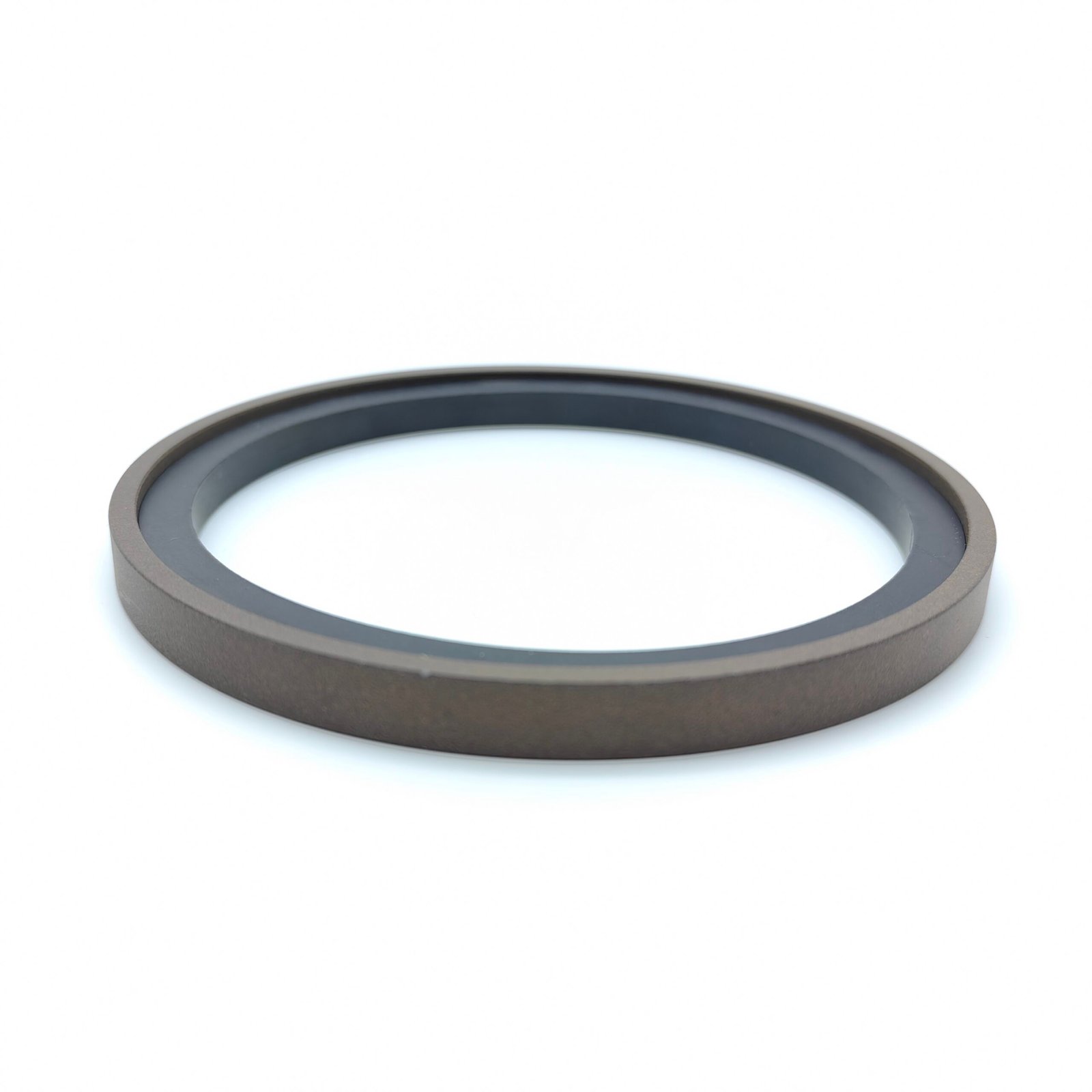

SPG is double-acting Piston seal，standard compact for wide application.One of the ptfe seals ,it maked by CNC precision machining with bronze-filled PTFE and a square-section NBR ring . simple design and easy to install.
Design Description:
The sliding material used is filled with polytetrafluoroethylene (PTFE). SPG piston seal exhibits very low friction resistance, eliminates crawling, and ensures high wear resistance. Due to its bi-directional sealing capability, a single seal eliminates the need for installation space. The elastomeric element is designed in a square shape, which enhances the stability of the seal. This is a standard combination seal widely used in various applications, particularly on pistons.
| CODE | D | d | h | H |
| SPG | 40 | 30 | 4.3 | 4.5 |
| SPG | 45 | 35 | ||
| SPG | 50 | 40 | ||
| SPG | 55 | 45 | ||
| SPG | 56 | 46 | ||
| SPG | 60 | 50 | ||
| SPG | 65 | 55 | ||
| SPG | 70 | 60 | ||
| SPG | 80 | 70 | ||
| SPG | 90 | 80 | ||
| SPG | 100 | 90 | ||
| SPG | 63 | 48 | 7.3 | 7.5 |
| SPG | 65 | 50 | ||
| SPG | 70 | 55 | ||
| SPG | 75 | 60 | ||
| SPG | 80 | 65 | ||
| SPG | 85 | 70 | ||
| SPG | 90 | 75 | ||
| SPG | 95 | 80 | ||
| SPG | 100 | 85 | ||
| SPG | 105 | 90 |
| CODE | D | d | h | H |
| SPG | 108 | 92 | 7.3 | 7.5 |
| SPG | 110 | 94 | ||
| SPG | 112 | 96 | ||
| SPG | 115 | 99 | ||
| SPG | 120 | 104 | ||
| SPG | 125 | 109 | ||
| SPG | 130 | 114 | ||
| SPG | 135 | 119 | ||
| SPG | 140 | 124 | ||
| SPG | 145 | 129 | ||
| SPG | 150 | 134 | ||
| SPG | 155 | 139 | ||
| SPG | 160 | 144 | ||
| SPG | 170 | 148 | 10.8 | 11 |
| SPG | 175 | 153 | ||
| SPG | 180 | 158 | ||
| SPG | 190 | 168 | ||
| SPG | 200 | 178 | ||
| SPG | 220 | 198 | ||
| SPG | 225 | 203 | ||
| SPG | 270 | 248 |
