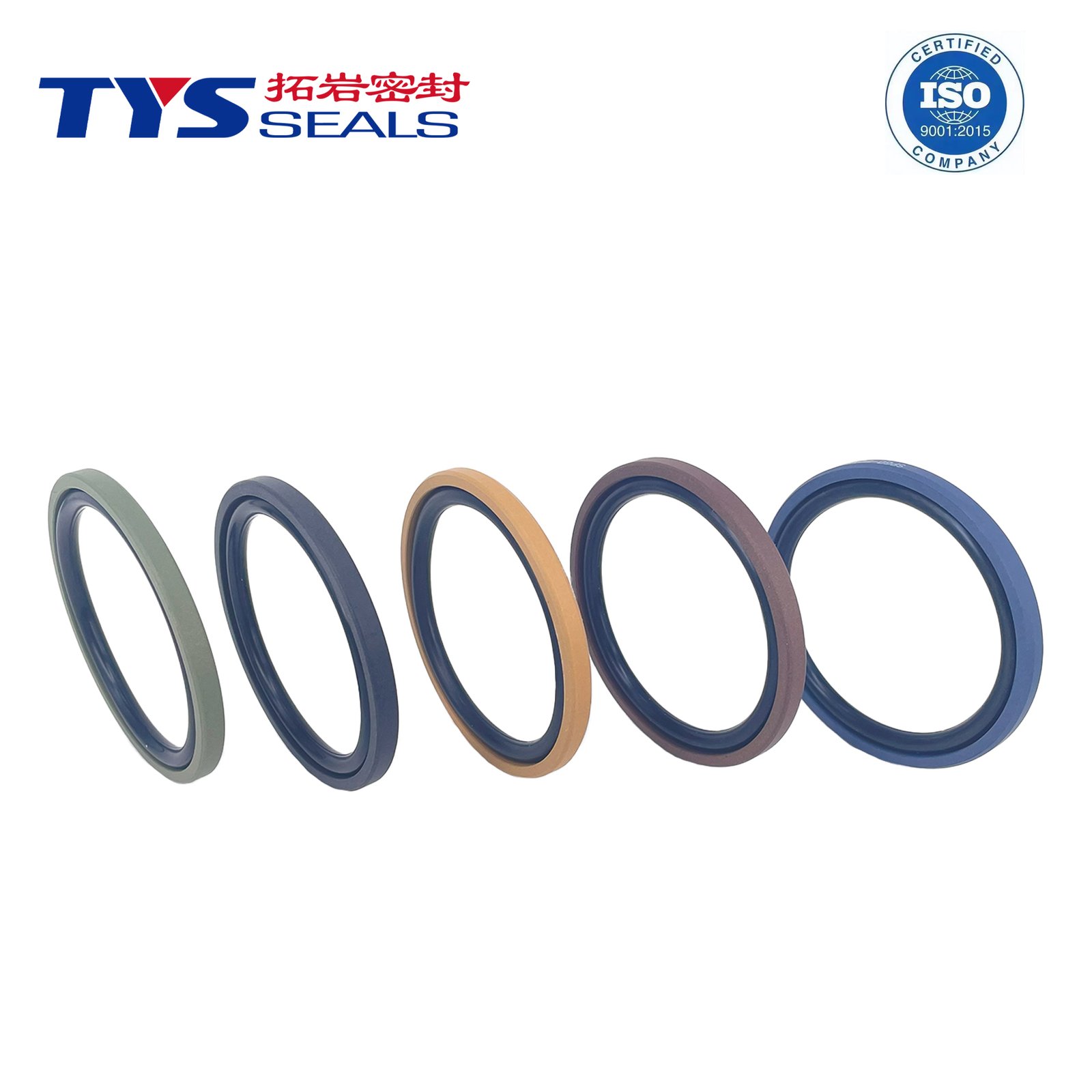

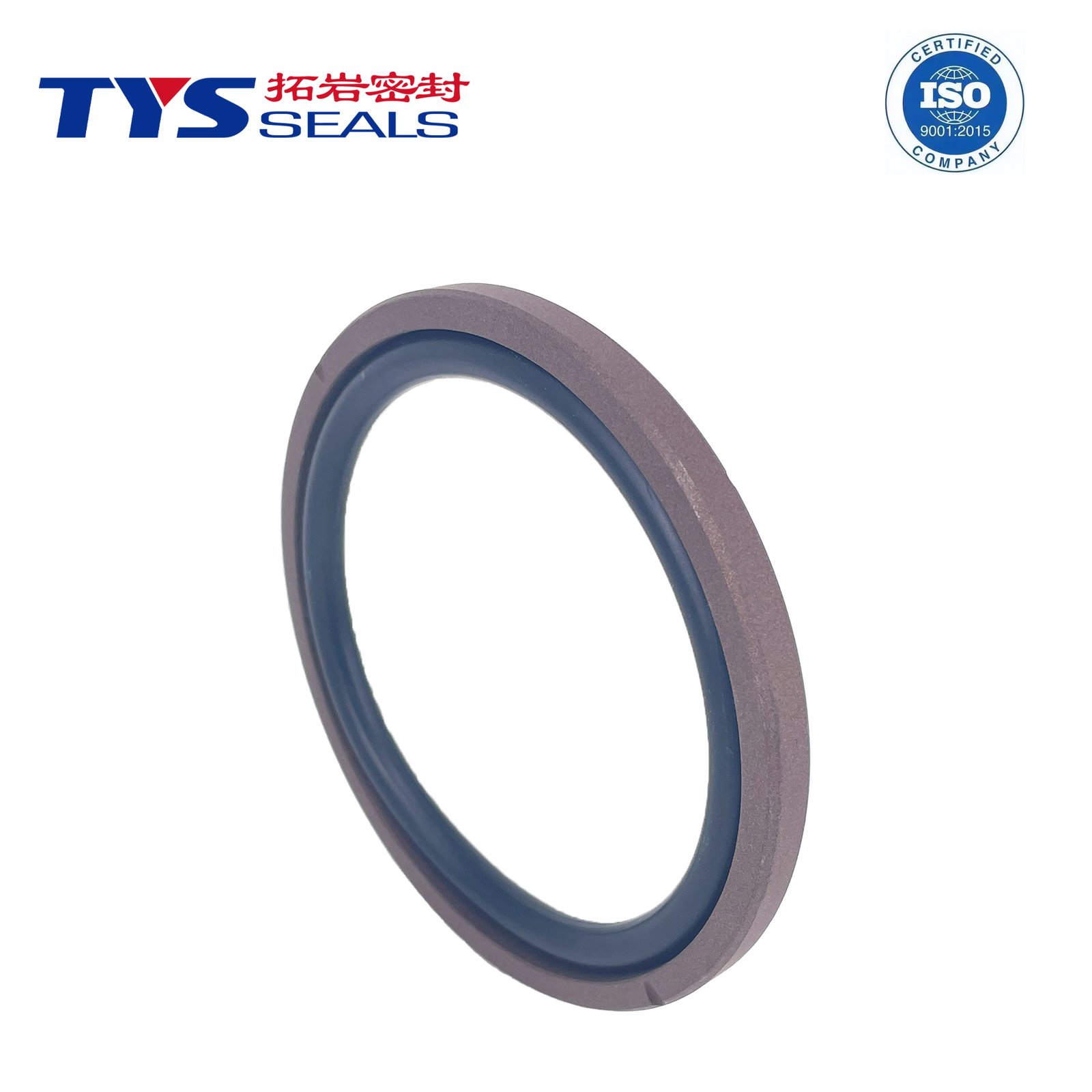

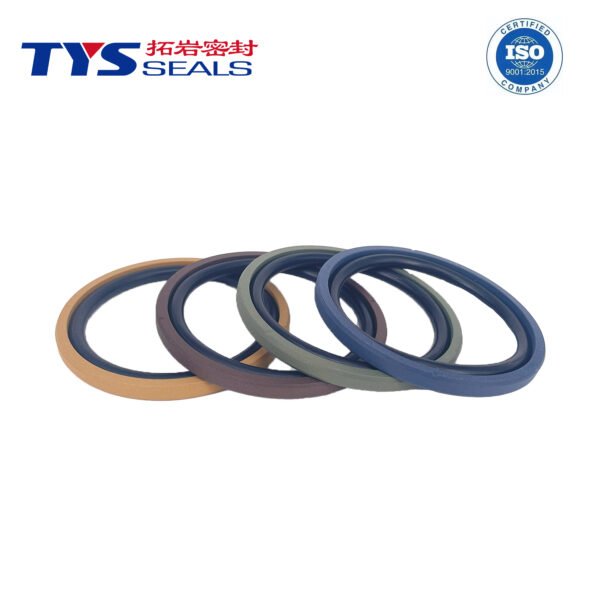

Glyd ring piston seal SPGO is a standard compact seal for wide application.It is used in double acting piston seal heavy equipment and working conditions performs well under high speed, high pressure and low pressure.You can send your inquire to get the glyd ring catalog from TYS.
Glyd Ring Piston Seal SPGO Materials:
Sealing ring: F-PTFE
O-ring: NBR or fluororubber FKM Features
Features:
Good sealing ability in both dynamic and static conditions
It can have a more significant extrusion gap, which can minimize costs
Due to the larger extrusion gap, it can be used safely even if there are contaminants in the medium
Low friction and durable
Simple design, easy to install
Strong adaptability to working conditions due to the availability of various materials.
Any specific need , contact TYS expert team please
Glyd ring piston seal is one of TYS’s outstanding products. It offers a great price advantage, good sealing performance, high reliability and stability.
TYS provides standard and customized glyd ring dimensions. You can contact the TYS team to obtain the glyd ring catalog and the glyd ring installation tool.
Application Scope:
Glyd ring piston seals SPGO are suitable of their applications include injection molding machines, bulldozers, agricultural machinery, presses, and other machine tools. These seals comply with the IS0 7425/1, GB/T1542.1-94, and GB/T15242.3-94 standards.

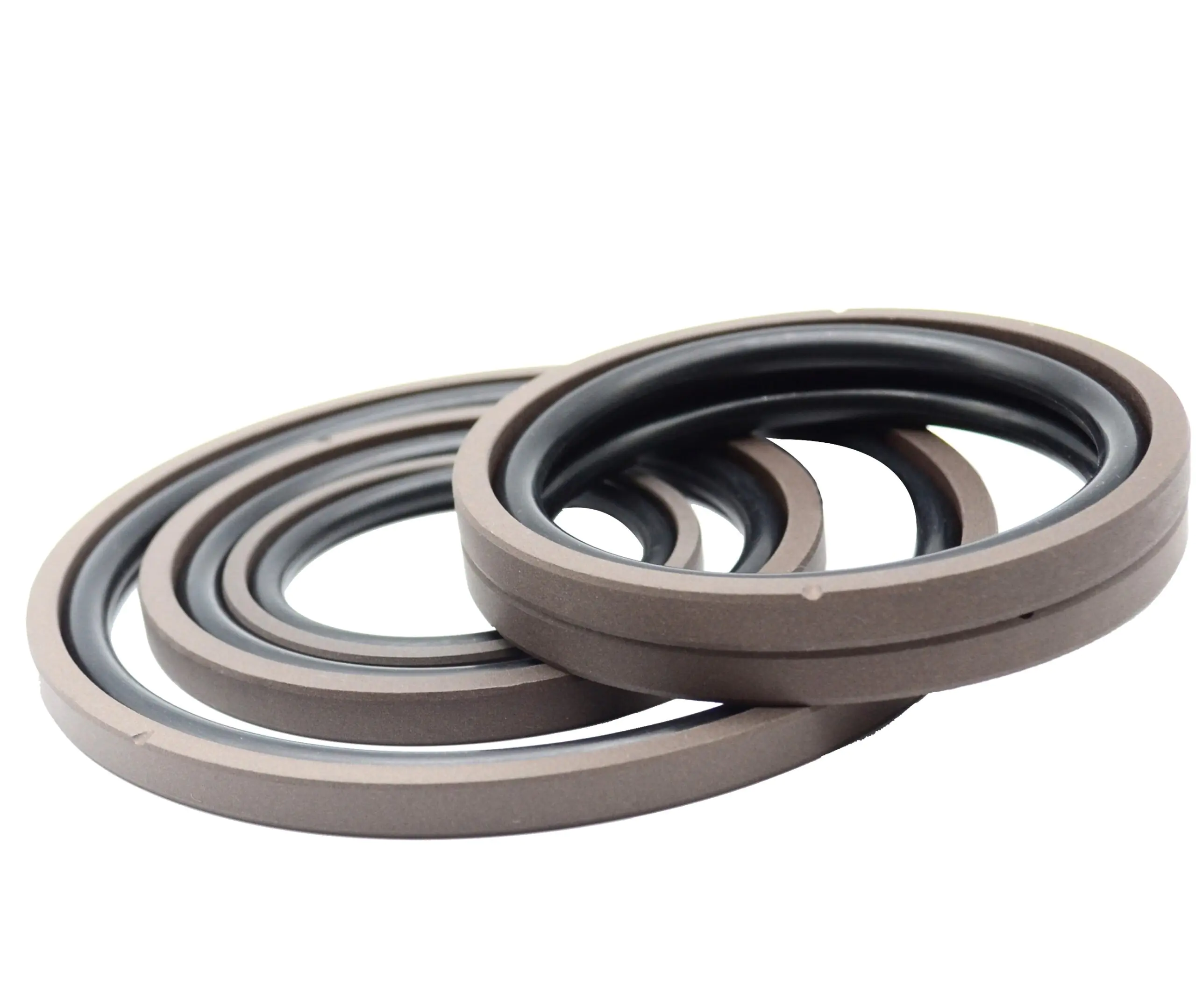

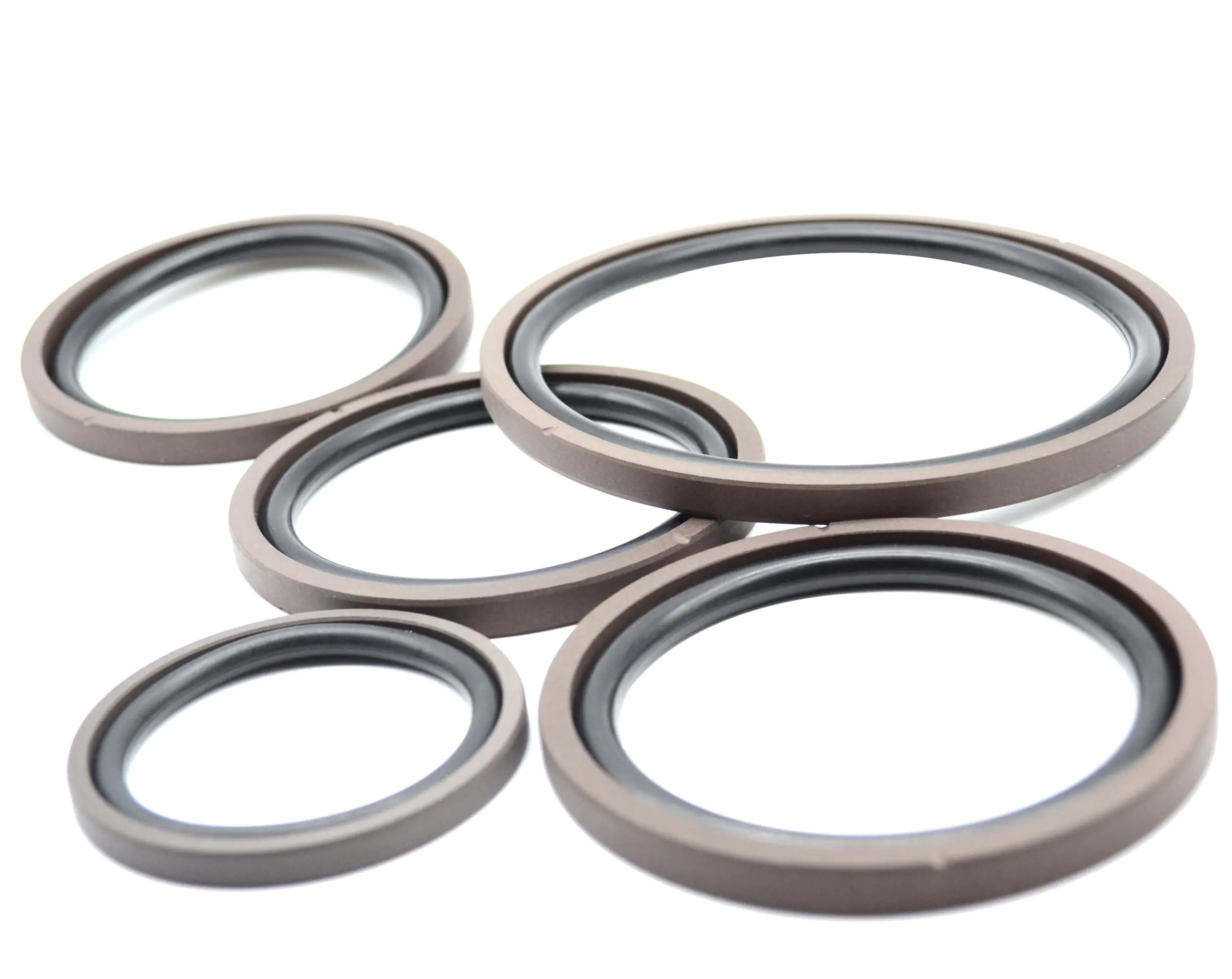

SPGO Glyd Ring | High-Performance PTFE Piston Seal | TYS Seals
SPGO Gly Ring is a high performance piston seal made of TYS’s own formulated high quality PTFE material.Designed for hydraulic cylinders, it ensures exceptional wear resistance, low friction, and reliable sealing performance in high-pressure applications.
| Feature | TYS SPGO Glyd Ring | Other Brand Seals |
| Material Quality | Premium PTFE Composite | Standard PTFE |
| Service Life | >10,000 hours | 5,000-8,000 hours |
| High-Temperature Performance | -45°C to +200°C | -20°C to +150°C |
| Friction and Wear | Minimal | Moderate to High |
Why Choose TYS SPGO Glyd Ring?
Produced using advanced CNC equipment to ensure consistent quality.
Customizable Designs: Tailored to meet specific customer requirements.
Proven Performance: Trusted by leading Original Equipment Manufacturers worldwide.
Expert Support: Our team offers technical assistance for your sealing needs.
Case Study: Enhancing Performance in Hydraulic Cylinders
Industry: Construction Machinery
Challenge: Frequent seal failures due to high-pressure and abrasive conditions.
Solution: Replaced standard seals with TYS SPGO Glyd Ring, designed with reinforced PTFE material.
Results: Extended seal life by 50%, reduced downtime, and improved operational efficiency.
Installation Guide
Clean the piston groove thoroughly to remove any debris or contaminants.
Inspect the SPGO Glyd Ring for any signs of damage before installation.
Install the ring carefully, ensuring it is properly seated in the groove.
Lubricate the seal with compatible hydraulic fluid before operation.
FAQs
Q: What materials are used in the Glyd Ring?
A: The SPGO Glyd Ring is made from high-quality PTFE combined with bronze fillers for enhanced performance.
Q: Can this seal handle extreme temperatures?
A: Yes, it operates efficiently within a temperature range of -50°C to +200°C.
Q: Is customization available for specific applications?
A: Absolutely! We offer customizable designs to meet unique customer requirements.
Recommended Resources
How to replace hydraulic cylinder seals?
Seal Failure Analysis in Hydraulic Cylinder?
Rod Seal VS Piston Seal

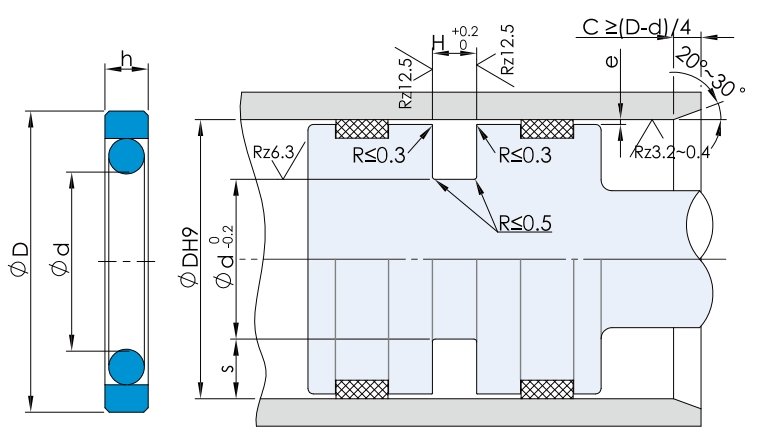

| Groove OD f8/h9 | Groove ID | Groove Width | Groove Base Radius | Radial Clearance max | O Ring Section | ||||
| Standard use | Light-duty use | Heave-duty use | d h9 | H | R | 10 Mpa | 20 Mpa | 40Mpa | d0 |
| 8 – 14.9 | 15-39.9 | – | D-4.9 | 2.2 | 0.4 | 0.4 | 0.3 | 0.2 | 1.78 |
| 15 – 39.9 | 40 – 79.9 | – | D-7.5 | 3.2 | 0.6 | 0.6 | 0.5 | 0.3 | 2.62 |
| 40 – 79.9 | 80 – 132.9 | – | D-11.0 | 4.2 | 1 | 0.7 | 0.5 | 0.3 | 3.53 |
| 80 – 132.9 | 133 – 329.9 | 15 – 39.9 | D-15.5 | 6.3 | 1.3 | 0.8 | 0.6 | 0.4 | 5.33 |
| 133 – 329.9 | 330 – 669.9 | 80 – 132.9 | D-21.0 | 8.1 | 1.8 | 0.8 | 0.6 | 0.4 | 7 |
| 330 – 669.9 | 670 – 999.9 | 133 – 329.9 | D-24.5 | 8.1 | 1.8 | 0.9 | 0.7 | 0.5 | 7 |
| 670 – 999.9 | – | 330 – 669.9 | D-28.0 | 9.5 | 2.5 | 1 | 0.8 | 0.6 | 8.4 |
| ≧1000 | ≧1000 | ≧700 | D-38.0 | 13.8 | 3 | 1.2 | 0.9 | 0.7 | 12 |
| CODE | D | d | H |
| Glyd Ring Seal SPGO | 8 | 3.1 | 2.2 |
| Glyd Ring Seal SPGO | 10 | 5.1 | 2.2 |
| Glyd Ring Seal SPGO | 12 | 7.1 | 2.2 |
| Glyd Ring Seal SPGO | 14 | 9.1 | 2.2 |
| Glyd Ring Seal SPGO | 16 | 11.1 | 2.2 |
| Glyd Ring Seal SPGO | 17 | 12.1 | 2.2 |
| Glyd Ring Seal SPGO | 18 | 13.1 | 2.2 |
| Glyd Ring Seal SPGO | 19 | 14.1 | 2.2 |
| Glyd Ring Seal SPGO | 20 | 15.1 | 2.2 |
| Glyd Ring Seal SPGO | 21 | 16.1 | 2.2 |
| Glyd Ring Seal SPGO | 22 | 17.1 | 2.2 |
| Glyd Ring Seal SPGO | 24 | 19.1 | 2.2 |
| Glyd Ring Seal SPGO | 15 | 7.5 | 3.2 |
| Glyd Ring Seal SPGO | 16 | 8.5 | 3.2 |
| Glyd Ring Seal SPGO | 18 | 10.5 | 3.2 |
| Glyd Ring Seal SPGO | 20 | 12.5 | 3.2 |
| Glyd Ring Seal SPGO | 21 | 13.5 | 3.2 |
| Glyd Ring Seal SPGO | 22 | 14.5 | 3.2 |
| Glyd Ring Seal SPGO | 24 | 16.5 | 3.2 |
| Glyd Ring Seal SPGO | 25 | 17.5 | 3.2 |
| Glyd Ring Seal SPGO | 28 | 20.5 | 3.2 |
| Glyd Ring Seal SPGO | 30 | 22.5 | 3.2 |
| Glyd Ring Seal SPGO | 32 | 24.5 | 3.2 |
| Glyd Ring Seal SPGO | 35 | 27.5 | 3.2 |
| Glyd Ring Seal SPGO | 36 | 28.5 | 3.2 |
| Glyd Ring Seal SPGO | 38 | 30.5 | 3.2 |
| Glyd Ring Seal SPGO | 40 | 29 | 4.2 |
| Glyd Ring Seal SPGO | 42 | 31 | 4.2 |
| Glyd Ring Seal SPGO | 45 | 34 | 4.2 |
| Glyd Ring Seal SPGO | 48 | 37 | 4.2 |
| Glyd Ring Seal SPGO | 50 | 39 | 4.2 |
| Glyd Ring Seal SPGO | 52 | 41 | 4.2 |
| Glyd Ring Seal SPGO | 55 | 44 | 4.2 |
| Glyd Ring Seal SPGO | 60 | 49 | 4.2 |
| Glyd Ring Seal SPGO | 63 | 52 | 4.2 |
| Glyd Ring Seal SPGO | 65 | 54 | 4.2 |
| Glyd Ring Seal SPGO | 70 | 59 | 4.2 |
| Glyd Ring Seal SPGO | 75 | 64 | 4.2 |
| Glyd Ring Seal SPGO | 80 | 69 | 4.2 |
| Glyd Ring Seal SPGO | 50 | 34.5 | 6.3 |
| Glyd Ring Seal SPGO | 55 | 39.5 | 6.3 |
| Glyd Ring Seal SPGO | 60 | 44.5 | 6.3 |
| CODE | D | d | H |
| Glyd Ring Seal SPGO | 63 | 47.5 | 6.3 |
| Glyd Ring Seal SPGO | 65 | 49.5 | 6.3 |
| Glyd Ring Seal SPGO | 68 | 52.5 | 6.3 |
| Glyd Ring Seal SPGO | 70 | 54.5 | 6.3 |
| Glyd Ring Seal SPGO | 75 | 59.5 | 6.3 |
| Glyd Ring Seal SPGO | 80 | 64.5 | 6.3 |
| Glyd Ring Seal SPGO | 85 | 69.5 | 6.3 |
| Glyd Ring Seal SPGO | 90 | 74.5 | 6.3 |
| Glyd Ring Seal SPGO | 95 | 79.5 | 6.3 |
| Glyd Ring Seal SPGO | 100 | 84.5 | 6.3 |
| Glyd Ring Seal SPGO | 105 | 89.5 | 6.3 |
| Glyd Ring Seal SPGO | 110 | 94.5 | 6.3 |
| Glyd Ring Seal SPGO | 115 | 99.5 | 6.3 |
| Glyd Ring Seal SPGO | 120 | 104.5 | 6.3 |
| Glyd Ring Seal SPGO | 125 | 109.5 | 6.3 |
| Glyd Ring Seal SPGO | 130 | 114.5 | 6.3 |
| Glyd Ring Seal SPGO | 135 | 119.5 | 6.3 |
| Glyd Ring Seal SPGO | 140 | 124.5 | 6.3 |
| Glyd Ring Seal SPGO | 70 | 49 | 8.1 |
| Glyd Ring Seal SPGO | 75 | 54 | 8.1 |
| Glyd Ring Seal SPGO | 80 | 59 | 8.1 |
| Glyd Ring Seal SPGO | 85 | 64 | 8.1 |
| Glyd Ring Seal SPGO | 90 | 69 | 8.1 |
| Glyd Ring Seal SPGO | 95 | 74 | 8.1 |
| Glyd Ring Seal SPGO | 100 | 79 | 8.1 |
| Glyd Ring Seal SPGO | 105 | 84 | 8.1 |
| Glyd Ring Seal SPGO | 110 | 89 | 8.1 |
| Glyd Ring Seal SPGO | 115 | 94 | 8.1 |
| Glyd Ring Seal SPGO | 120 | 99 | 8.1 |
| Glyd Ring Seal SPGO | 125 | 104 | 8.1 |
| Glyd Ring Seal SPGO | 130 | 109 | 8.1 |
| Glyd Ring Seal SPGO | 135 | 114 | 8.1 |
| Glyd Ring Seal SPGO | 140 | 119 | 8.1 |
| Glyd Ring Seal SPGO | 145 | 124 | 8.1 |
| Glyd Ring Seal SPGO | 150 | 129 | 8.1 |
| Glyd Ring Seal SPGO | 155 | 134 | 8.1 |
| Glyd Ring Seal SPGO | 160 | 139 | 8.1 |
| Glyd Ring Seal SPGO | 165 | 144 | 8.1 |
| Glyd Ring Seal SPGO | 170 | 149 | 8.1 |
| Glyd Ring Seal SPGO | 175 | 154 | 8.1 |
| Glyd Ring Seal SPGO | 180 | 159 | 8.1 |
| Glyd Ring Seal SPGO | 185 | 164 | 8.1 |
| CODE | D | d | H |
| Glyd Ring Seal SPGO | 190 | 169 | 8.1 |
| Glyd Ring Seal SPGO | 195 | 174 | 8.1 |
| Glyd Ring Seal SPGO | 200 | 179 | 8.1 |
| Glyd Ring Seal SPGO | 205 | 184 | 8.1 |
| Glyd Ring Seal SPGO | 210 | 189 | 8.1 |
| Glyd Ring Seal SPGO | 215 | 194 | 8.1 |
| Glyd Ring Seal SPGO | 220 | 199 | 8.1 |
| Glyd Ring Seal SPGO | 225 | 204 | 8.1 |
| Glyd Ring Seal SPGO | 230 | 209 | 8.1 |
| Glyd Ring Seal SPGO | 240 | 219 | 8.1 |
| Glyd Ring Seal SPGO | 250 | 229 | 8.1 |
| Glyd Ring Seal SPGO | 260 | 239 | 8.1 |
| Glyd Ring Seal SPGO | 270 | 249 | 8.1 |
| Glyd Ring Seal SPGO | 280 | 259 | 8.1 |
| Glyd Ring Seal SPGO | 290 | 269 | 8.1 |
| Glyd Ring Seal SPGO | 300 | 279 | 8.1 |
| Glyd Ring Seal SPGO | 310 | 289 | 8.1 |
| Glyd Ring Seal SPGO | 320 | 299 | 8.1 |
| Glyd Ring Seal SPGO | 300 | 275.5 | 8.1 |
| Glyd Ring Seal SPGO | 310 | 285.5 | 8.1 |
| Glyd Ring Seal SPGO | 320 | 295.5 | 8.1 |
| Glyd Ring Seal SPGO | 330 | 305.5 | 8.1 |
| Glyd Ring Seal SPGO | 340 | 315.5 | 8.1 |
| Glyd Ring Seal SPGO | 350 | 325.5 | 8.1 |
| Glyd Ring Seal SPGO | 360 | 335.5 | 8.1 |
| Glyd Ring Seal SPGO | 370 | 345.5 | 8.1 |
| Glyd Ring Seal SPGO | 380 | 355.5 | 8.1 |
| Glyd Ring Seal SPGO | 390 | 365.5 | 8.1 |
| Glyd Ring Seal SPGO | 400 | 375.5 | 8.1 |
| Glyd Ring Seal SPGO | 410 | 385.5 | 8.1 |
| Glyd Ring Seal SPGO | 420 | 395.5 | 8.1 |
| Glyd Ring Seal SPGO | 430 | 405.5 | 8.1 |
| Glyd Ring Seal SPGO | 440 | 415.5 | 8.1 |
| Glyd Ring Seal SPGO | 450 | 425.5 | 8.1 |
| Glyd Ring Seal SPGO | 460 | 435.5 | 8.1 |
| Glyd Ring Seal SPGO | 470 | 445.5 | 8.1 |
| Glyd Ring Seal SPGO | 480 | 455.5 | 8.1 |
| Glyd Ring Seal SPGO | 490 | 465.5 | 8.1 |
| CODE | D | d | H |
| Glyd Ring Seal SPGO | 500 | 475.5 | 8.1 |
| Glyd Ring Seal SPGO | 510 | 485.5 | 8.1 |
| Glyd Ring Seal SPGO | 520 | 495.5 | 8.1 |
| Glyd Ring Seal SPGO | 530 | 505.5 | 8.1 |
| Glyd Ring Seal SPGO | 540 | 515.5 | 8.1 |
| Glyd Ring Seal SPGO | 550 | 525.5 | 8.1 |
| Glyd Ring Seal SPGO | 560 | 535.5 | 8.1 |
| Glyd Ring Seal SPGO | 570 | 545.5 | 8.1 |
| Glyd Ring Seal SPGO | 580 | 555.5 | 8.1 |
| Glyd Ring Seal SPGO | 590 | 565.5 | 8.1 |
| Glyd Ring Seal SPGO | 600 | 575.5 | 8.1 |
| Glyd Ring Seal SPGO | 610 | 585.5 | 8.1 |
| Glyd Ring Seal SPGO | 620 | 595.5 | 8.1 |
| Glyd Ring Seal SPGO | 630 | 605.5 | 8.1 |
| Glyd Ring Seal SPGO | 640 | 615.5 | 8.1 |
| Glyd Ring Seal SPGO | 650 | 625.5 | 8.1 |
| Glyd Ring Seal SPGO | 660 | 635.5 | 8.1 |
| Glyd Ring Seal SPGO | 670 | 642 | 9.5 |
| Glyd Ring Seal SPGO | 680 | 652 | 9.5 |
| Glyd Ring Seal SPGO | 690 | 662 | 9.5 |
| Glyd Ring Seal SPGO | 700 | 672 | 9.5 |
| Glyd Ring Seal SPGO | 710 | 682 | 9.5 |
| Glyd Ring Seal SPGO | 720 | 692 | 9.5 |
| Glyd Ring Seal SPGO | 740 | 712 | 9.5 |
| Glyd Ring Seal SPGO | 750 | 722 | 9.5 |
| Glyd Ring Seal SPGO | 800 | 772 | 9.5 |
| Glyd Ring Seal SPGO | 900 | 872 | 9.5 |
| Glyd Ring Seal SPGO | 1000 | 962 | 13.8 |
| Glyd Ring Seal SPGO | 1050 | 1012 | 13.8 |
| Glyd Ring Seal SPGO | 1065 | 1027 | 13.8 |
| Glyd Ring Seal SPGO | 1070 | 1032 | 13.8 |
| Glyd Ring Seal SPGO | 1100 | 1062 | 13.8 |
| Glyd Ring Seal SPGO | 1200 | 1162 | 13.8 |
| Glyd Ring Seal SPGO | 1230 | 1192 | 13.8 |
| Glyd Ring Seal SPGO | 1250 | 1212 | 13.8 |
| Glyd Ring Seal SPGO | 1500 | 1462 | 13.8 |
| SGlyd Ring Seal SPGO | 1800 | 1762 | 13.8 |
| Glyd Ring Seal SPGO | 2000 | 1962 | 13.8 |
