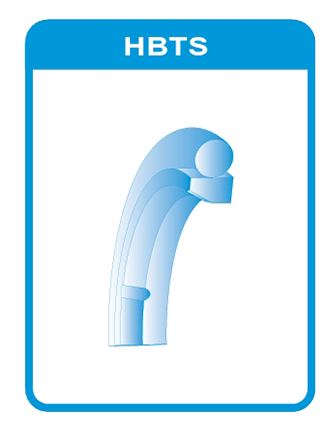

HBTS ptfe rod seal is single-acting O-ring energized rod seals have proven to be ideal for a variety of applications. These seals are typically made from our high-quality materials and are designed with an elastomer booster to optimize performance. It can be used as a single rod seal or as a secondary seal in a rod seal system to provide optimum sealing performance.
Advantage of HBTS ptfe rod seal:
HBTS and HBY have the same functionality and offer lower friction resistance in applications that require high speed or extremely short strokes. They feature a conical surface with relief grooves to release back pressure.
HBTS ptfe rod seal is designed to minimize friction resistance, provide efficient sealing, and are suitable for high-speed or short-stroke environments. The conical surface structure helps reduce the contact area between the sealing lips and the working surface, there by reducing friction resistance. The presence of relief grooves allows for the release of back pressure, ensuring reliable sealing performance and stability.
HBTS Application:
HBTS ptfe rod seal can be used in various mechanical and hydraulic systems, particularly in equipment that requires high-speed motion or extremely short strokes. They offer excellent sealing performance and reliability.
| d | D | h | H |
| 40 | 55.5 | 6 | 6.3 |
| 45 | 60.5 | 6 | 6.3 |
| 50 | 65.5 | 6 | 6.3 |
| 55 | 70.5 | 6 | 6.3 |
| 60 | 75.5 | 6 | 6.3 |
| 65 | 80.5 | 6 | 6.3 |
| 70 | 85.5 | 6 | 6.3 |
| 75 | 90.5 | 6 | 6.3 |
| 80 | 95.5 | 6 | 6.3 |
| 85 | 100.5 | 6 | 6.3 |
| 90 | 105.5 | 6 | 6.3 |
| 95 | 110.5 | 6 | 6.3 |
| 100 | 115.5 | 6 | 6.3 |
| 105 | 120.5 | 6 | 6.3 |
| 110 | 125.5 | 6 | 6.3 |
| 115 | 130.5 | 6 | 6.3 |
| 120 | 135.5 | 6 | 6.3 |
| 120 | 141 | 7.9 | 8.1 |
| 125 | 140.5 | 6 | 6.3 |
| d | D | h | H |
| 125 | 146 | 7.9 | 8.1 |
| 130 | 145.5 | 6 | 6.3 |
| 130 | 151 | 7.9 | 8.1 |
| 135 | 150.5 | 6 | 6.3 |
| 135 | 156 | 7.9 | 8.1 |
| 140 | 155.5 | 6 | 6.3 |
| 140 | 161 | 7.9 | 8.1 |
| 145 | 160.5 | 6 | 6.3 |
| 150 | 165.5 | 6 | 6.3 |
| 150 | 171 | 7.9 | 8.1 |
| 160 | 175.5 | 6 | 6.3 |
| 160 | 181 | 7.9 | 8.1 |
| 170 | 185.5 | 6 | 6.3 |
| 170 | 191 | 7.9 | 8.1 |
| 180 | 195.5 | 6 | 6.3 |
| 180 | 201 | 7.9 | 8.1 |
| 190 | 211 | 7.9 | 8.1 |
| 200 | 221 | 7.9 | 8.1 |
