MPA Pu Rod Seal

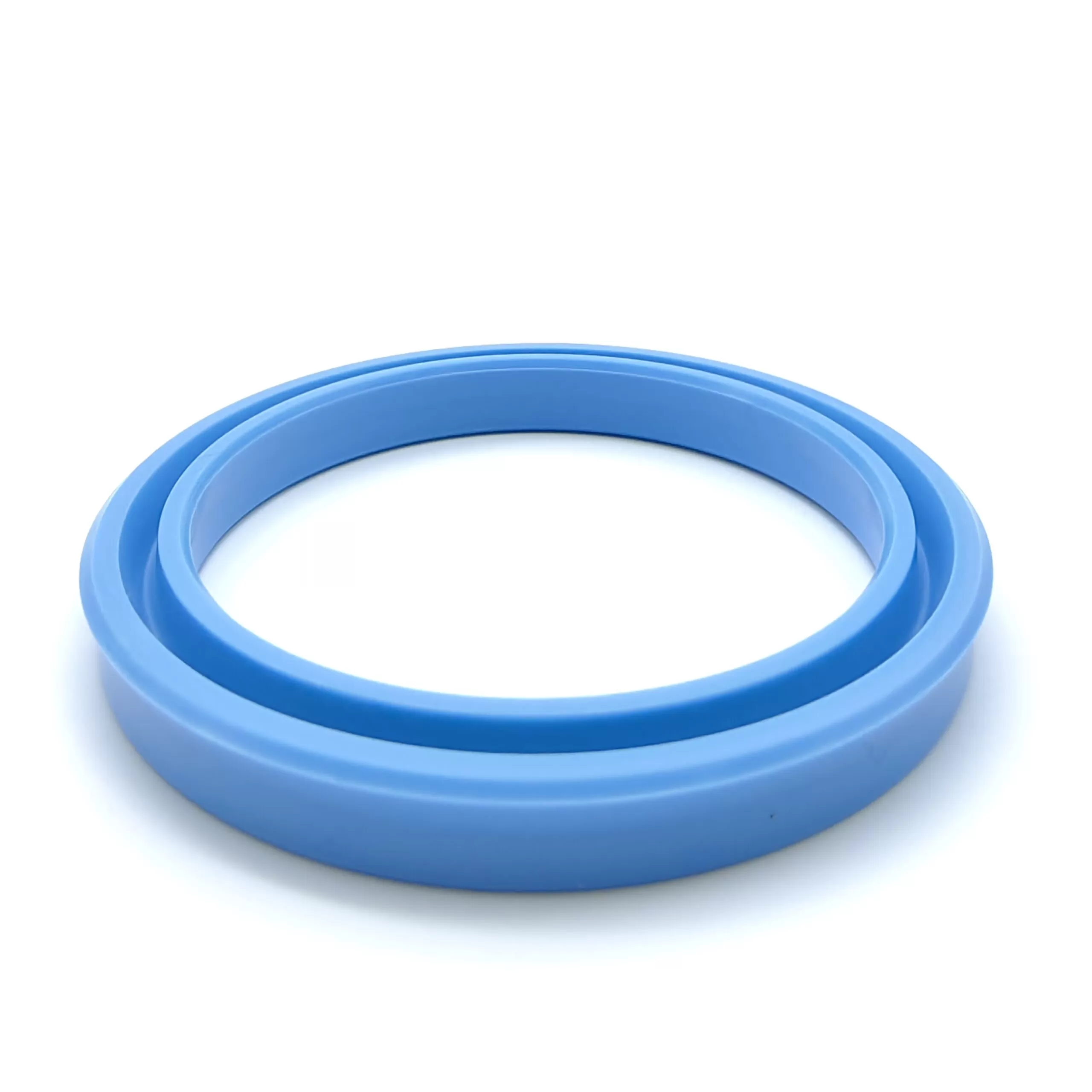

MPA pu rod seal is an asymmetric u cup rod seal with an outer diameter that tightly fits the indentation of the inner lip, and has good residual oil withdrawal capabilities.

Introduction

Technical Information

Introduction

Technical Information

Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

× How can I help you?

Hot Search Terms

Pressure	40Mpa
Speed	0.5m/s
Material(PU)	U3091	U4031	U2051	U2041
Temperature(°C)	-45+100	-35+100	-25+120	-30+120
Media	Mineral Base Hydraulic Oil

Depth S	16MPa	25MPa	40MPa
4	0.4	0.3	0.15
5	0.5	0.4	0.2
7.5	0.55	045	0.25
10	0.6	0.5	0.3

(For Pressures)	14MPa	21MPa	35MPa
(Backup Ring Material)	(PTFE)
e2	e1+0.5	e1+0.25	e1+0.1
(For Pressures)	35Mpa	42Mpa	70Mpa
(Backup Ring Material)	（NYLON）
e2	e1+0.4	e1+0.2	e1+0.1

d	D	h	H
14	22	5	5.7
16	24	5	5.7
16	24	5.7	6.3
18	26	5	5.7
18	26	5.7	6.3
20	28	5	5.7
20	28	5.7	6.3
20	28	6.3	7
22	30	5	5.7
22	30	5.7	6.3
22	30	6.3	7
25	33	5	5.7
25	33	5.7	6.3
25	33	6.3	7
25	35	6	7
28	36	5	5.7
28	36	5.7	6.3
28	36	6.3	7
28	38	6	7
28	38	7	8
30	38	5	5.7
30	38	5.7	6.3
30	38	6.3	7
30	40	6	7
30	40	7	8
30	40	8	9
32	40	6.3	7
32	42	6	7
32	42	7	8
32	42	8	9
35	43	6.3	7
35	45	6	7
35	45	7	8
35	45	8	9
36	46	6	7
36	46	7	8
36	46	8	9
38	48	6	7
38	48	7	8
38	48	8	9
40	50	6	7

d	D	h	H
40	50	7	8
40	50	8	9
40	55	9	10
40	53	10	11
45	55	6	7
45	55	7	8
45	55	8	9
45	60	9	10
45	58	10	11
45	60	11.4	12.5
50	60	6	7
50	60	7	8
50	60	8	9
50	65	9	10
50	63	10	11
50	65	11.4	12.5
53	63	6	7
53	63	7	8
53	63	8	9
55	65	6	7
55	65	7	8
55	65	8	9
55	70	9	10
55	68	10	11
55	70	11.4	12.5
56	71	11.4	12.5
60	70	6	7
60	70	7	8
60	70	8	9
60	75	9	10
60	73	10	11
60	75	11.4	12.5
63	73	6	7
63	73	7	8
63	73	8	9
63	78	9	10
63	78	11.4	12.5
65	75	6	7
65	75	7	8
65	75	8	9
65	80	9	10

MPA Pu Rod Seal - TYS Seals

Need help?

MPA Pu Rod Seal

Technical Parameters:

Installation Dimension:

MPA piston cup seal sizes:

Inch Specification Table:

Send A Message

Contact us

d	D	h	H
14	22	5	5.7
16	24	5	5.7
16	24	5.7	6.3
18	26	5	5.7
18	26	5.7	6.3
20	28	5	5.7
20	28	5.7	6.3
20	28	6.3	7
22	30	5	5.7
22	30	5.7	6.3
22	30	6.3	7
25	33	5	5.7
25	33	5.7	6.3
25	33	6.3	7
25	35	6	7
28	36	5	5.7
28	36	5.7	6.3
28	36	6.3	7
28	38	6	7
28	38	7	8
30	38	5	5.7
30	38	5.7	6.3
30	38	6.3	7
30	40	6	7
30	40	7	8
30	40	8	9
32	40	6.3	7
32	42	6	7
32	42	7	8
32	42	8	9
35	43	6.3	7
35	45	6	7
35	45	7	8
35	45	8	9
36	46	6	7
36	46	7	8
36	46	8	9
38	48	6	7
38	48	7	8
38	48	8	9
40	50	6	7

d	D	h	H
100	120	12	13
100	120	15	16
105	120	9	10
105	120	10	11
105	125	12	13
105	125	15	16
110	125	9	10
110	125	10	11
110	130	10	11
110	130	12	13
110	130	15	16
115	130	9	10
115	130	10	11
115	135	12	13
115	135	15	16

d	D	h	H
120	135	9	10
120	135	10	11
120	140	10	11
120	140	12	13
120	140	15	16
120	140	15	16
125	140	9	10
130	145	9	10
130	150	12	13
130	150	15	16
135	150	9	10
140	155	9	10
140	160	12	13
140	160	15	16
145	160	9	10

d	D	h	H
150	165	9	10
150	170	12	13
150	170	15	16
155	170	9	10
160	175	9	10
160	180	12	13
160	180	15	16
170	190	12	13
170	190	15	16
180	200	12	13
180	200	15	16
190	210	12	13
190	210	15	16
200	220	12	13
200	220	15	16

mm				inch
