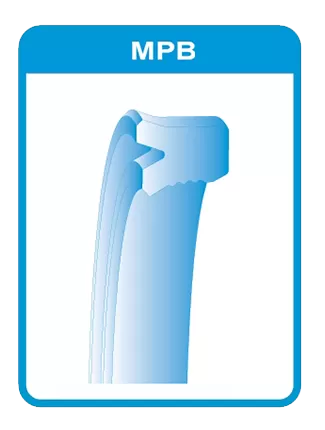

MPB pu rod seal is a polyurethane material u cup rod seal with a tight outer diameter. The inner lip is designed with multiple oil grooves. It has excellent lubrication effect, avoids dry friction and wear, and has good residual oil withdrawal ability.
