DKBI is metal wiper seal suitable for reciprocating, oscillating, or rotary motion systems and exhibits excellent dust scraping capability, wear resistance, and long service life.
Can't find what you are looking for? Contact one of our experts.
Product Categories
DKBI is metal wiper seal suitable for reciprocating, oscillating, or rotary motion systems and exhibits excellent dust scraping capability, wear resistance, and long service life.
Design Description:

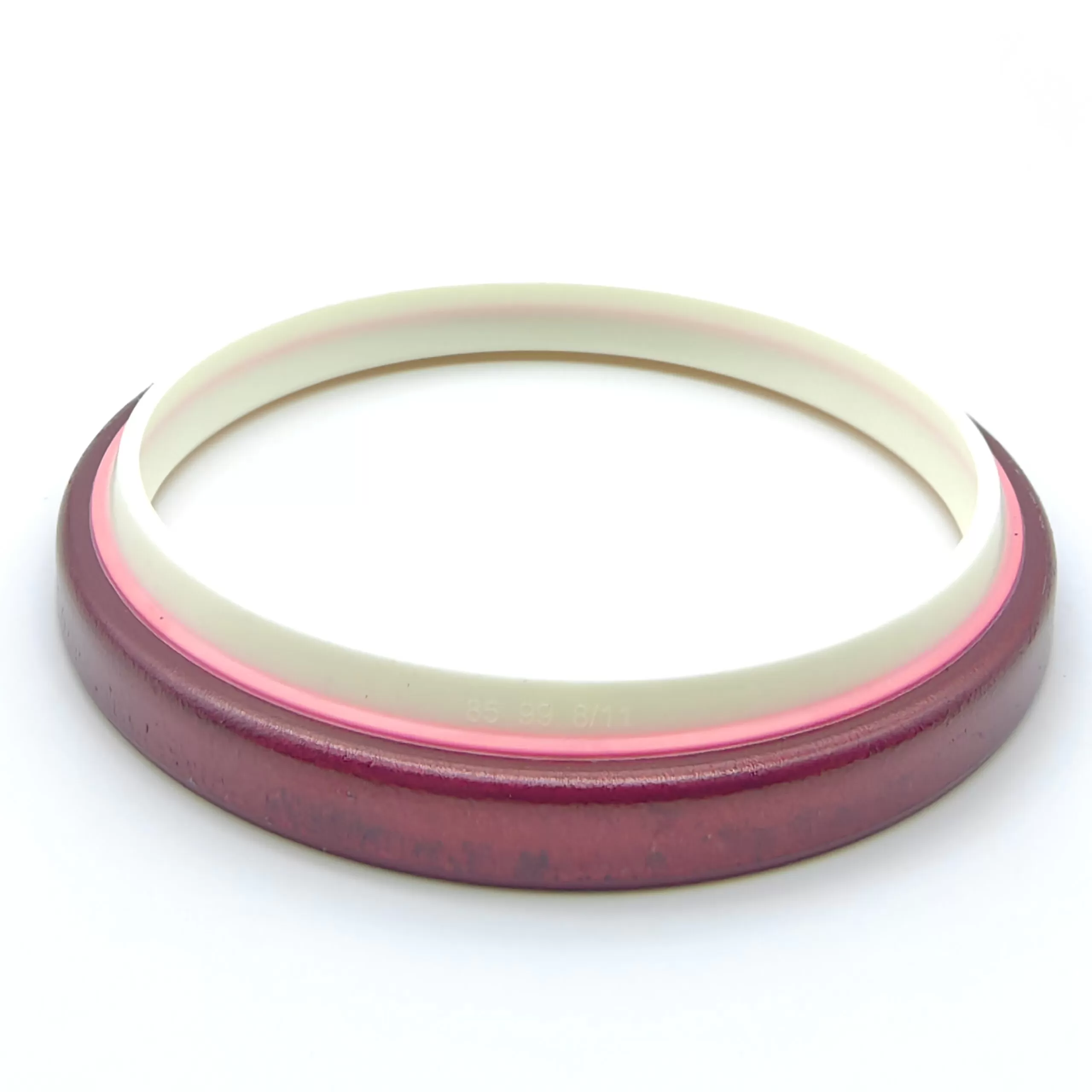

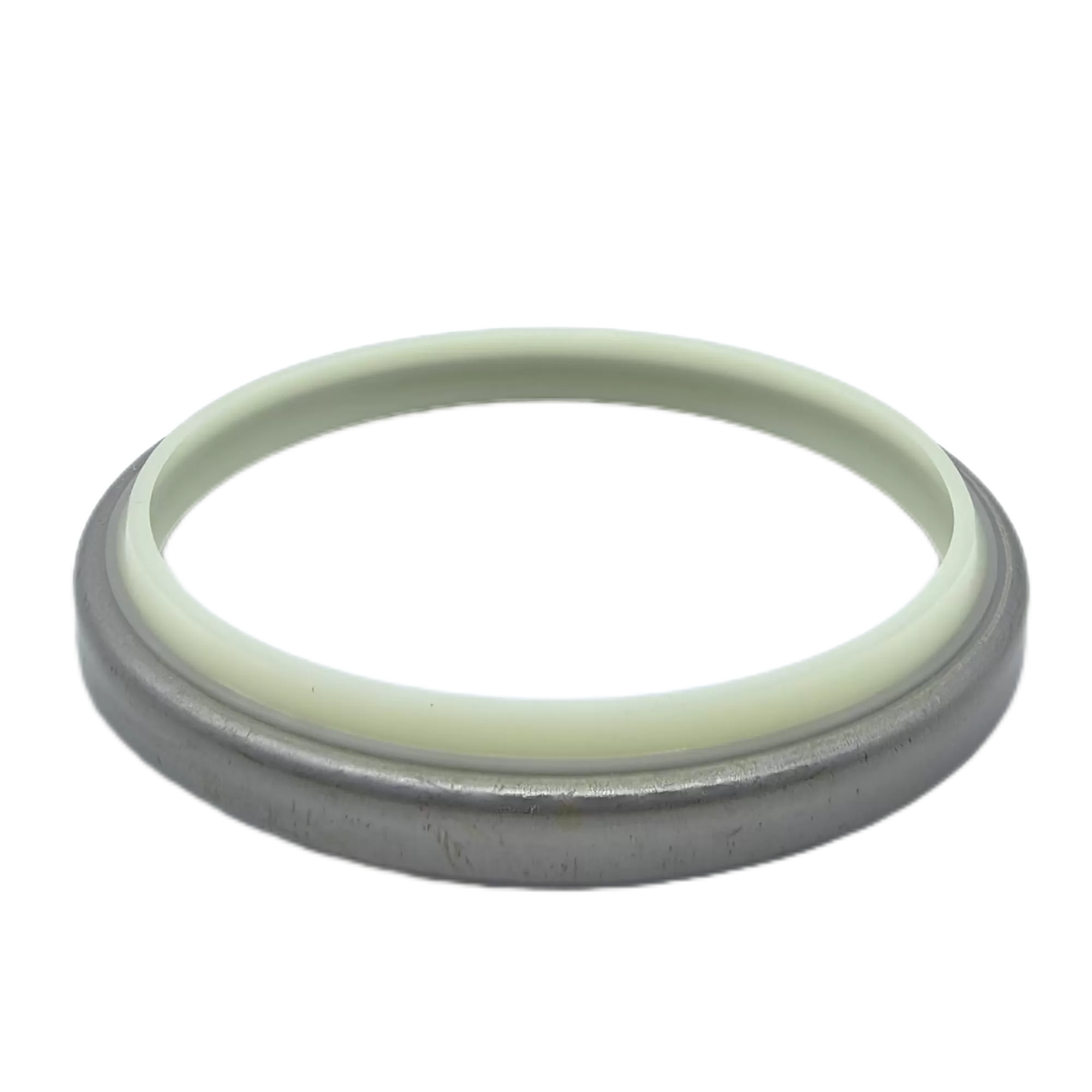

DKBI is a pin dust seal with a metal frame and elastomer(two materials for the elastomer- PU or NBR) for hydraulic applications that prevent various negative foreign particles from entering the cylinder. This is a double lip wiper seal that protects the device keeps it sealed and prevents external dust from entering. It can be loaded into the entire slot.
| CODE | d | D | t | h | H | D2 |
| DKBI | 30 | 42 | 6 | 9 | 6.4 | 37 |
| DKBI | 35 | 47 | 7 | 10 | 7.5 | 42 |
| DKBI | 40 | 52 | 7 | 10 | 7.5 | 47 |
| DKBI | 45 | 57 | 7 | 10 | 7.5 | 52 |
| DKBI | 50 | 62 | 7 | 10 | 7.5 | 57 |
| DKBI | 55 | 69 | 8 | 11 | 8.6 | 62 |
| DKBI | 60 | 74 | 8 | 11 | 8.6 | 67 |
| DKBI | 65 | 79 | 8 | 11 | 8.6 | 72 |
| DKBI | 70 | 84 | 8 | 11 | 8.6 | 77 |
| DKBI | 75 | 89 | 8 | 11 | 8.6 | 82 |
| DKBI | 80 | 94 | 8 | 11 | 8.6 | 87 |
| DKBI | 85 | 99 | 8 | 11 | 8.6 | 92 |
| DKBI | 90 | 104 | 8 | 11 | 8.6 | 97 |
| DKBI | 95 | 109 | 8 | 11 | 8.6 | 102 |
| DKBI | 100 | 114 | 8 | 11 | 8.6 | 107 |
| DKBI | 105 | 121 | 9 | 12 | 9.6 | 113 |
| DKBI | 110 | 126 | 9 | 12 | 9.6 | 118 |
| DKBI | 115 | 131 | 9 | 12 | 9.6 | 123 |
| DKBI | 120 | 136 | 9 | 12 | 9.6 | 128 |
| DKBI | 125 | 141 | 9 | 12 | 9.6 | 133 |
| DKBI | 130 | 146 | 9 | 12 | 9.6 | 138 |
| DKBI | 140 | 160 | 10 | 14 | 10.5 | 150 |
